| Spec/Model |
FH-120-PP |
FH-150-PP |
FH-180-PP |
FH-200-PP |
FH-220-PP |
External
Dimensions
W x D x H |
1200 x 830 x 2320 mm
47.3x 32.6 x 91.3” |
1500 x 830 x 2320 mm
59.0 x 32.6 x 91.3” |
1800 x 830 x 2320 mm
70.8 x 32.6 x 91.3” |
2000 x 830 x 2320 mm
78.7 x 32.6 x 91.3” |
2200 x 830 x 2320mm
86.6 x 32.6 x 91.3” |
Workspace
(W x D x H) |
1000 x 630 x 1170 mm
39.4 x 24.8 x 46” |
1300 x 630 x 1170 mm
51.2 x 24.8 x 46” |
1600 x 630 x 1170 mm
63 x 24.8 x 46” |
1800 x 630 x 1170 mm
70.8 x 24.8 x 46” |
2000 x 630 x 1170mm
78.8 x 24.8 x 46” |
| Exhaust Collar Dimensions |
1 X 10”/250MM |
1 X 10”/250MM |
1 X 10”/250MM |
1 X 12”/315MM |
1 X 12”/315MM |
| WE CAN CUSTOMIZE ANY SIZE – EVEN A SINGLE UNIT! CONTACT US FOR DETAILS |
| Front Sash Max Opening |
720 mm / 28.3" |
720 mm / 28.3" |
720 mm / 28.3" |
720 mm / 28.3" |
720 mm / 28.3" |
Production /
test Standard |
EN-14175 / ASHRAE 110-1995 |
| Air Velocity |
0.5±0.1 m/s, 100±20 fpm |
| Hood Material |
Polypropylene |
| Worktop |
The standard worktop is, polypropylene, other options are: HPL/ Ceramic / Epoxy / Stainless steel |
| Standard System |
The standard control system is a 7” color display with on/off controls (Upgraded options are available) |
Add on
accessories |

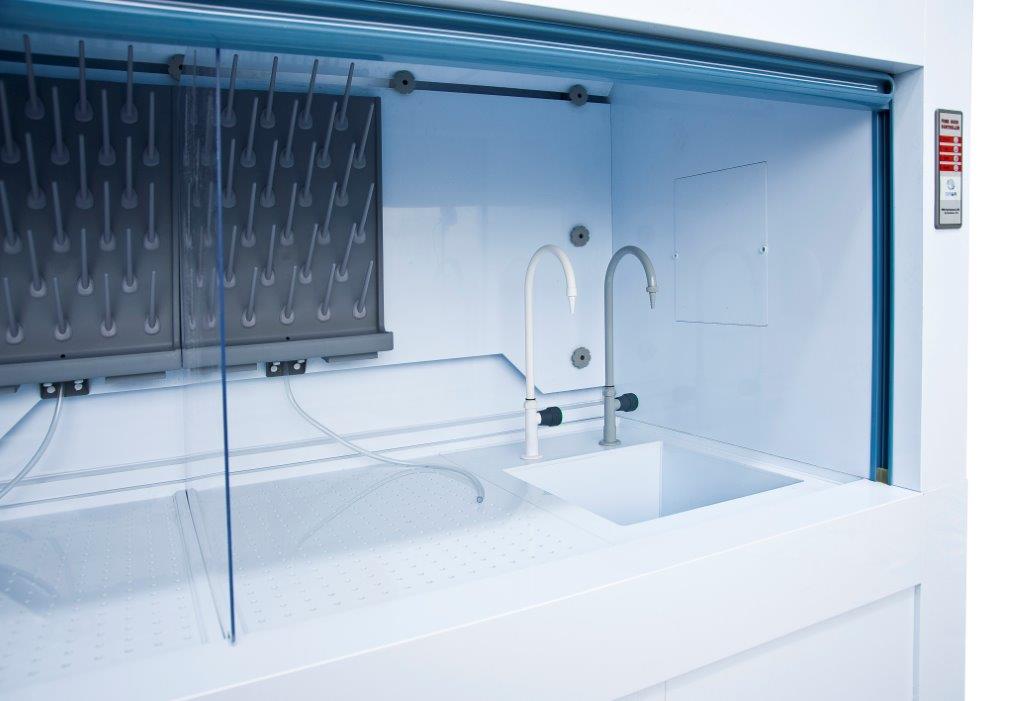

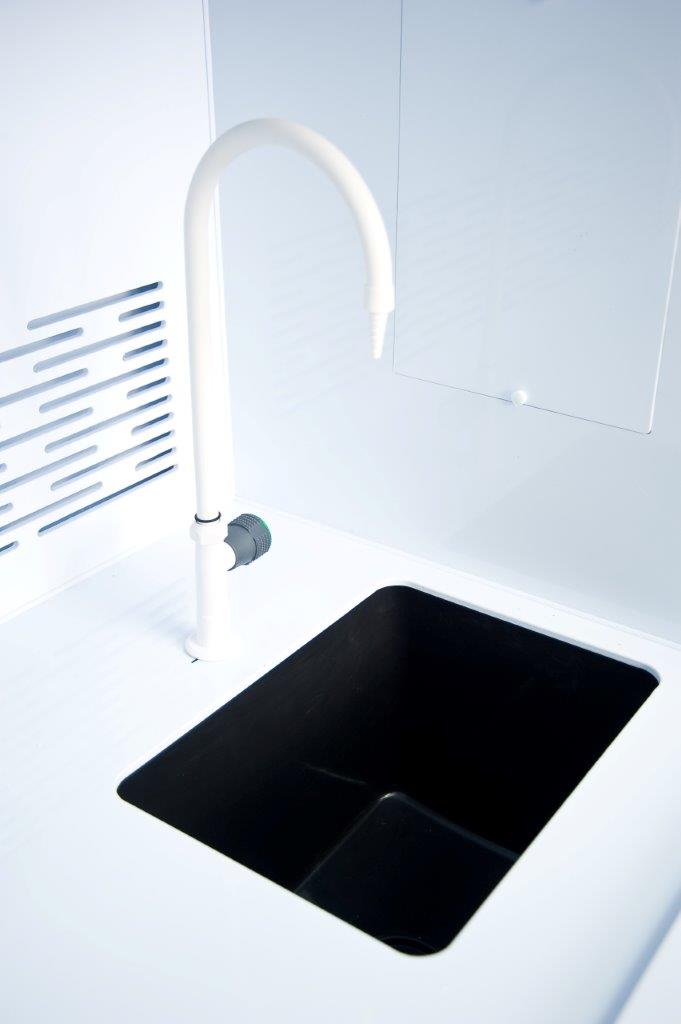

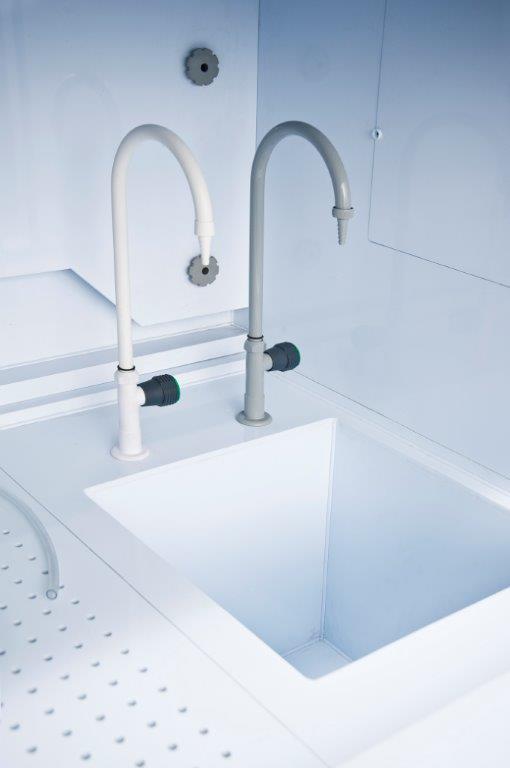

Water tap / gas tap / vacuum tap / pp sink / triplex glass / explosion-proof light |
| Power Supply |
110/220 V, 50/60 Hz.
Includes a single-phase power supply. A three-phase power supply can be special ordered.
|
| Illumination |
800 lux LED lights |
